Data Warehousing: Data(base) Mirroring in Microsoft Fabric (New feature)

Data Warehousing Series

Microsoft recently announced [4] the preview of a new Fabric feature called Mirroring, a low-cost, low-latency fully managed service that allows to replicate data from various systems together into OneLake [1]. Currently only Azure SQL Database, Azure Cosmos DB, and Snowflake are supported, though probably more database vendors will be targeted soon.

For Microsoft Fabric's data engineers, data scientists and data warehouse professionals this feature is huge as importance because they don't need to care anymore about making the data available in Microsoft Fabric, which involves a considerable amount of work.

Usually, at least for flexibility, transparence, performance and standardization, data professionals prefer to extract the data 1:1 from the source systems into a landing zone in the data warehouse or data/delta lake from where the data are further processed as needed. One data pipeline is thus built for every table in scope, which sometimes is a 10–15-minute effort per table, when the process is standardized, though upon case the effort is much higher if troubleshooting (e.g. data type incompatibility or support) or further logic changes are involved. Maintaining such data pipelines can prove to be costly over time, especially when periodic changes are needed.

Microsoft lists other downsides of the ETL approach - restricted access to data changes, friction between people, processes, and technology, respectively the effort needed to create the pipelines, and the time needed for importing the data [1]. There's some truth is each of these points, though everything is relative. For big tables, however, refreshing all the data overnight can prove to be time-consuming and costly, especially when the data don't lie within the same region, respectively data center. Unless the data can be refreshed incrementally, the night runs can extend into the day, will all the implications that derive from this - not having actual data, which decreases the trust in reports, etc. There are tricks to speed up the process, though there are limits to what can be done.

With mirroring, the replication of data between data sources and the analytics platform is handled in the background, after an initial replication, the changes in the source systems being reflected with a near real-time latency into OneLake, which is amazing! This allows building near real-time reporting solutions which can help the business in many ways - reviewing (and correcting in the data source) records en masse, faster overview of what's happening in the organizations, faster basis for decision-making, etc. Moreover, the mechanism is fully managed by Microsoft, which is thus responsible for making sure that the data are correctly synchronized. Only from this perspective 10-20% from the effort of building an analytics solution is probably reduced.

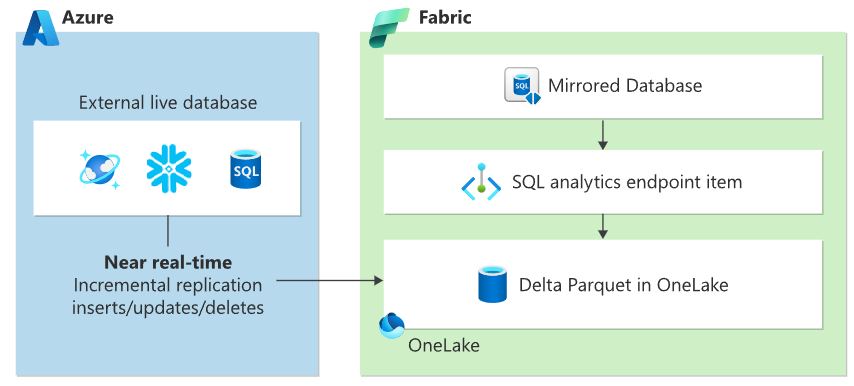

Mirroring in Microsoft Fabric (adapted after [2])

According to the documentation, one can replicate a whole database or choose individual regular tables (currently views aren't supported [3]), stop, restart, or remove a table from a mirroring. Moreover, through sharing, users can grant to other users or groups of users access to a mirrored database without giving access to the workspace and the rest of its items [1].

The data professionals and citizens can write then cross-database queries against the mirrored databases, warehouses, and the SQL analytics endpoints of lakehouses, combining data from all these sources into a single T-SQL query, which opens lot of opportunities especially in what concerns the creation of an enterprise semantic model, which should be differentiated from the semantic model created by default by the mirroring together with the SQL analytics endpoint.

Considering that the data is replicated into delta tables, one can take advantage of all the capabilities available with such tables - data versioning, time travel, interoperability and/or performance, respectively direct consumption in Power BI.

Previous Post <<||>> Next Post

References:
[1] Microsoft Learn - Microsoft Fabric (2024) What is Mirroring in Fabric? (link)
[2] Microsoft Learn - Microsoft Fabric (2024) Mirroring Azure SQL Database [Preview] (link)
[3] Microsoft Learn - Microsoft Fabric (2024) Frequently asked questions for Mirroring Azure SQL Database in Microsoft Fabric [Preview] (link)
[4] Microsoft Fabric Updates Blog (2024) Announcing the Public Preview of Mirroring in Microsoft Fabric, by Charles Webb (link)

Microsoft Fabric: Mirroring (Notes)

Disclaimer: This is work in progress intended to consolidate information from various sources.
Last updated: 18-Apr-2024

Mirroring in Microsoft Fabric (adapted after [2])

Mirroring

• low-cost, low-latency fully managed service that allows to replicate data from various systems together into OneLake [1]
• supported in Azure SQL Database, Azure Cosmos DB, Snowflake [1]
• ⇒ replaces ETL pipelines
• ⇐ manages the replication of data into OneLake and conversion to Parquet [1]
• changes have a near real-time latency [3]
• uses the source database’s CDC feature [4]
• {benefit} allows users to use a highly integrated, end-to-end, and easy-to-use service [1]
• the mirrored data can be used in Power BI
• ⇐ since tables are all v-ordered delta tables [3]
• {benefit} the delta tables can then be used in every Fabric experience, allowing users to accelerate their journey into Fabric [1]
• {restriction} replication of views is currently not supported [3]
• {benefit} allows to write cross-database queries against the mirrored databases, warehouses, and the SQL analytics endpoints of Lakehouses in a single T-SQL query [1]
• landing zone in OneLake
• stores both the snapshot and change data [3]
• ⇐ improves performance when converting files into delta verti-parquet [3]
• {operation} enable the mirroring
• by creating a secure connection to the operational data source
• an entire database or individual tables can be replicated
• creates three items in the targeted workspace:
• the mirrored database
• a SQL analytics endpoint
• a Default semantic model
• the same source database can be mirrored multiple times
• ⇐ though usually not needed
• scenario: replicating data to different types of environments
• {operation} stopping the mirroring
• stops the replication in the source database, but a copy of the tables is kept in OneLake [3]
• {operation} restarting the mirroring
• results in all data being replicated from the start [3]
• {operation} remove a table from mirroring
• the table is no longer replicated and its data is deleted from OneLake [3]
• {operation} sharing
• users grant other users or groups of users access to a mirrored database without giving access to the workspace and the rest of its items [1]
• access is also granted to the SQL analytics endpoint and associated default semantic model [1]
• shared mirrored databases can be found through either
• Data Hub
• Shared with Me section in Microsoft Fabric
• triggers an initial replication
• {requirement} [licensing] requires Power BI Premium, Fabric Capacity, or Trial Capacity
• {feature} monitoring
• {benefit} allows to gain insights into mirroring operations and when the replica in Fabric OneLake was last refreshed [4]
• [Azure SQL Database]
• {restriction} doesn't support Azure SQL Database logical servers behind an AVN or private networking [2]
• {requirement} update the Azure SQL logical server firewall rules to Allow public network access [2]
• {requirement} enable the Allow Azure services option to connect to your Azure SQL Database logical server [2]
• {restriction}
•  access through the Power BI Gateway or behind a firewall is unsupported [3]
• authentication
• SQL authentication with user name and password
• Microsoft Entra ID
• Service Principal
• {troubleshooting} check if the changes properly flow
• via sys.dm_change_feed_log_scan_sessions DMV
• {troubleshooting} check if there are any problems reported
• via sys.dm_change_feed_errors DMV
• {troubleshooting} check if the mirroring was properly enabled
• via sp_help_change_feed stored procedure
• {troubleshooting} disable mirroring
• via sp_change_feed_disable_db stored procedure

Acronyms:
AVN - Azure Virtual Network
CDC - Change Data Capture

ETL - Extract, Transfer, Load

DMV - Dynamic Management View

References:
[1] Microsoft Learn - Microsoft Fabric (2024) What is Mirroring in Fabric? (link)
[2] Microsoft Learn - Microsoft Fabric (2024) Mirroring Azure SQL Database [Preview] (link)
[3] Microsoft Learn - Microsoft Fabric (2024) Frequently asked questions for Mirroring Azure SQL Database in Microsoft Fabric [Preview] (link)
[4] Microsoft Fabric Updates Blog (2023) (link)

Resources:
[1] Tutorial: Configure Microsoft Fabric mirrored databases from Azure SQL Database [Preview] (link)
[2] Microsoft Fabric Updates Blog (2024) Announcing the Public Preview of Mirroring in Microsoft Fabric, by Charles Webb (link)

Data Migrations (DM): What is Data Migration?

Data Migrations Series

If you are working in a data-centric business it’s almost impossible for the average worker not to have heard this term, even tangentially. Considering the meaning of “migration” - the act or process of moving from one place to another - the intuition might even tell what data migration is about: the process of moving data from one place to another. It’s pretty basic, isn’t it? Now as data are moved over and over again between various places, for example the various layers of an applications, between databases, between media storage devices, and so on, we need some precision in defining the term because not all these can be considered as data migration examples. Actually we can talk about data copying or data movement without speaking of data migration. So, what is data migration? Here are a few takes on defining data migration:

“process of transferring data from one platform or operating system to another” (Babylon)

"Data migration is the process of transferring data between storage types, formats, or computer systems." (Wikipedia)

 "Data migration is the movement of legacy data to new media and technologies as the older ones are displaced." (Toolbox)

 “The purpose of data migration is to transfer existing data to the new environment.” (Talend)

 “Data Migration is the process of moving data from one or more sources into a target application” (Utopia Inc.)

 “[…] is the one off selection, preparation and transportation of appropriate data, of the right quality, to the right place, at the right time.” (J. Morris)

Resuming the above definitions, data migration can be defined as “the process of selecting, assessing, converting, preparing, validating and moving data from one or more information systems to another system”. The definition isn’t at all perfect, first of all because some of the terms need further explanation, secondly because any of the steps may be skip or other important steps can be identified in the process, and thirdly because further clarifications are needed. Anyway, it offers some precision, and at least for this reason, could be preferred to the above definitions.

So, resuming, data migration supposes the movement of data from one or more information systems, referred as source systems, to another one, the target system. Typically the new system replaces the old systems, they being retired, or they can continue to be used with reduced scope, for example for reporting purposes or . Even if performed in stages, the movement is typically one time activity, so everything has to be perfect. That’s the purpose of the other steps – to minimize the risks of something going wrong. The choice of steps and their complexity depends on the type of information systems involved, on the degree of resemblance between source and target, business needs, etc.

As mentioned above, not everything that involves data movement can be considered as data migration. For example data integration involves the movement and combination of data from various information systems in order to provide a unified view. Data synchronization involves the movement of data in order to reflect the changes of data in one information system into another, when data from the two systems need to be consistent. Data mirroring involves the synchronization of data, though it involves an exact copy of the data, the mirroring occurring continuously in real time. Data backup involves the movement/copy of data at a given point in time for eventual restore in case of data loss. Data transfer refers to the movement of row data between the layers of information systems. To make things even fuzzier, these types of data movements can be considered in a data migration too, as data need to be locally integrated, synchronized, transferred, mirrored or back up. Data migration is overall a complex thematic.
