🪄SSRS: Graphical Representations I (SQL Server CPU Utilization)

As described in a previous post, the Scheduler Monitor buffer exposed via the sys.dm_os_ring_buffers  data management view (DMV) provides a history of 4 hours uptime with minute by minute data points (in total 256 entries) with the CPU utilization for the SQL Server, other processes, respectively the system idle time as percentages. SSRS is ideal for showing the respective information within a chart.

For this create a new report (e.g. CPU Utilization) by using the Report Wizard based on the following query:

-- cpu utilization for SQL Server and other applications
DECLARE @ts_now bigint = (SELECT cpu_ticks/(cpu_ticks/ms_ticks)
        FROM sys.dm_os_sys_info);

SELECT DAT.record_id
, DAT.EventTime
, DAT.SQLProcessUtilization
, DAT.SystemIdle
, 100 - (DAT.SystemIdle + DAT.SQLProcessUtilization) OtherUtilization
FROM (
 SELECT record.value('(./Record/@id)[1]', 'int') record_id
 , record.value('(./Record/SchedulerMonitorEvent/SystemHealth/SystemIdle)[1]', 'int') SystemIdle
 , record.value('(./Record/SchedulerMonitorEvent/SystemHealth/ProcessUtilization)[1]', 'int') SQLProcessUtilization
 , EventTime
 FROM (
  SELECT DATEADD(ms, -1 * (@ts_now - [timestamp]), GETDATE()) EventTime
  , [timestamp]
  , CONVERT(xml, record) AS [record]
  FROM sys.dm_os_ring_buffers
  WHERE ring_buffer_type = N'RING_BUFFER_SCHEDULER_MONITOR'
    AND record LIKE N'%<SystemHealth>%') AS x
 ) AS DAT
ORDER BY DAT.record_id DESC;

After creating the report delete the available table and add a chart by right-clicking inside the report and from the floating menu choose Inser/Chart. Within the Select Chart Type select Line/Shape as chart type:

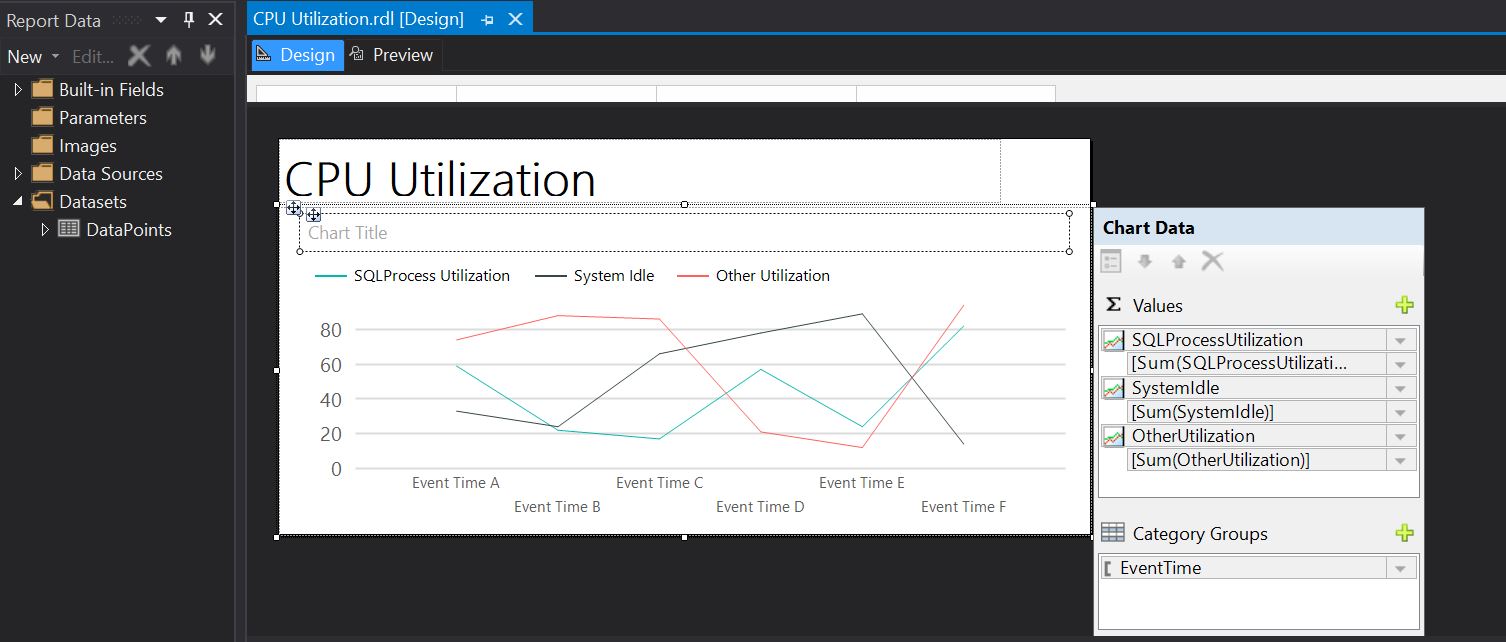

Resize the chart to provide an acceptable level of detail, then click within the chart area and add the SQLProcesUtilization, SystemIdle and OtherUtilization as values Values, respectively the EventTime as Category Group.

It is needed to edit horizontal's axis properties - select the respective region and from the floating menu chose Horizontal Axis Properties. Within Axis Options chose Scalar as axis type, ideal for numeric and date values:

Axis Options

Within the Number section select the Time as category and provide the type as below (e.g. 13:30):

Number Section

As last change, add a header, move report's title within the header and add a text box next to it with the following formula to show the time when the report was run:

= Now().ToString("dd.MM.yyyy HH:mm:ss")

With these changes the report is set to be run:

Design mode

Here's the preview

Preview mode

Unfortunately the default choice of colors is not really ideal as red is used for warnings, and green for positive trends, which is not necessarily the case for a CPU's utilization.

One can play with the various chart types, for example by selecting the chart area and changing the chart type as Area/Range one can obtain the following chart (it is needed to change the Axis Type as Scalar again):

Happy coding!

💠🛠️🪄SQL Server: Undocumented (Part III: SQL Server CPU Utilization via the Ring Buffer)

Introduction

If no proper monitoring solution of the SQL Server and the hosting server is in place to review the CPU utilization, one can use the Scheduler Monitor buffer provided by the undocumented sys.dm_os_ring_buffers data management view (DMV). Introduced with SQL Server 2005, the DMV provides significant amount of diagnostic memory information in XML form via several buffers: Resource Monitor, Out-of-Memory, Memory Broker, Buffer Pool, respectively Scheduler Monitor buffer [2]. A ring buffer is a recorded response to a notification [1].

The view changed between the various versions of SQL Server, while with the introduction of Always On availability groups in SQL Server 2017 further buffer rings were made available (see [5]).

Warning:

According to Microsoft (see [4] the sys.dm_os_ring_buffers is provided only for information purposes, the future compatibility post SQL Server 2019 being not guaranteed!

Querying the Scheduler Monitor Buffer

Within the Scheduler Monitor buffer, the DMV stores a history of 4 hours uptime with minute by minute data points (in total 256 entries) with the CPU utilization for the SQL Server, other processes, respectively the system idle time as percentages. It allows thus to identify the peaks in CPU utilization and thus to determine the intervals of focus for further troubleshooting. As the data are stored within an XML structure, the values can be queried via the XQuery syntax as follows:

-- cpu utilization for SQL Server and other applications
DECLARE @ts_now bigint = (SELECT cpu_ticks/(cpu_ticks/ms_ticks)
        FROM sys.dm_os_sys_info);

SELECT DAT.record_id
, DAT.EventTime
, DAT.SQLProcessUtilization
, DAT.SystemIdle
, 100 - (DAT.SystemIdle + DAT.SQLProcessUtilization) OtherUtilization
FROM (
	SELECT record.value('(./Record/@id)[1]', 'int') record_id
	, record.value('(./Record/SchedulerMonitorEvent/SystemHealth/SystemIdle)[1]', 'int') SystemIdle
	, record.value('(./Record/SchedulerMonitorEvent/SystemHealth/ProcessUtilization)[1]', 'int') SQLProcessUtilization
	, EventTime
	FROM (
		SELECT DATEADD(ms, -1 * (@ts_now - [timestamp]), GETDATE()) EventTime
		, [timestamp]
		, CONVERT(xml, record) AS [record]
		FROM sys.dm_os_ring_buffers
		WHERE ring_buffer_type = N'RING_BUFFER_SCHEDULER_MONITOR'
		  AND record LIKE N'%<SystemHealth>%') AS x
	) AS DAT
ORDER BY DAT.record_id DESC;

If the SQL Server is not busy as all, the SQL Server utilization time may tend to 0%, while the system idle time to 90%. (It's the case of my SQL Server lab.)

CPU Utilization for my home SQL Server lab

Notes:

If the server was restarted within the last 4 hours, then the points will have a gap between two readings corresponding to the downtime interval.

The query is supposed to run also on Linux machines, though the SystemIdle time will be 0. One can thus consider the SQL and non-SQL CPU utilization.

Storing the History

The above query can be run on a regular basis (e.g. every 3-4 hours) via a SSIS package and push the data into a table for historical purposes. Because is needed to have a continuous history of the readings, it's better if the gap between runs is smaller than the 4 hours. No matter of the approach used is better to check for overlappings when storing the data:

-- dropping the table
-- DROP TABLE IF EXISTS dbo.T_RingBufferReadings

-- reinitilizing the history
-- TRUNCATE TABLE dbo.T_RingBufferReadings

-- creating the table
CREATE TABLE dbo.T_RingBufferReadings (
  Id bigint IDENTITY (1,1) NOT NULL
, RecordId bigint
, EventTime datetime2(3) NOT NULL
, SQLProcessUtilization int NOT NULL
, SystemIdle int NOT NULL
, OtherUtilization int NOT NULL
)


-- reviewing the data
SELECT *
FROM dbo.T_RingBufferReadings
ORDER BY EventTime DESC

If there are many records, to improve the performance, one can create also an index, which can include the reading points as well:

-- creating a unique index with an include
CREATE UNIQUE NONCLUSTERED INDEX [UI_T_RingBufferReadings_EventTime] ON dbo.T_RingBufferReadings
(
	EventTime ASC,
    RecordId ASC
) INCLUDE (SQLProcessUtilization, SystemIdle, OtherUtilization)
GO

The above query based on the DMV becomes:

-- cpu utilization by SQL Server and other applications
DECLARE @ts_now bigint = (SELECT cpu_ticks/(cpu_ticks/ms_ticks)
        FROM sys.dm_os_sys_info);

INSERT INTO dbo.T_RingBufferReadings
SELECT record_id
, DAT.EventTime
, DAT.SQLProcessUtilization
, DAT.SystemIdle
, 100 - (DAT.SystemIdle + DAT.SQLProcessUtilization) OtherUtilization
FROM (
	SELECT record.value('(./Record/@id)[1]', 'int') record_id
	, record.value('(./Record/SchedulerMonitorEvent/SystemHealth/SystemIdle)[1]', 'int') SystemIdle
	, record.value('(./Record/SchedulerMonitorEvent/SystemHealth/ProcessUtilization)[1]', 'int') SQLProcessUtilization
	, EventTime
	FROM (
		SELECT DATEADD(ms, -1 * (@ts_now - [timestamp]), GETDATE()) EventTime
		, [timestamp]
		, CONVERT(xml, record) AS [record]
		FROM sys.dm_os_ring_buffers
		WHERE ring_buffer_type = N'RING_BUFFER_SCHEDULER_MONITOR'
		  AND record LIKE N'%<SystemHealth>%') AS x
	) AS DAT
	LEFT JOIN dbo.T_RingBufferReadings RBR
	  ON DAT.record_id = RBR.Recordid
WHERE RBR.Recordid IS NULL
ORDER BY DAT.record_id DESC;

Note:
A ServerName column can be added to the table if is needed to store the values for different SQL Servers. Then the LEFT JOIN has to consider the new added column.
Either of the two queries can be used to display the data points within a chart via SSRS, Power BI or any reporting tool available.

Happy coding!

References:
[1] Grant Fritchey (2014) SQL Server Query Performance Tuning: Troubleshoot and Optimize Query Performance in SQL Server 2014, 4th Ed.
[2] Sunil Agarwal et al (2005), Troubleshooting Performance Problems in SQL Server 2005, Source: TShootPerfProbs.docx
[3] Sunil Agarwal et al (2008), Troubleshooting Performance Problems in SQL Server 2008, Source: TShootPerfProbs2008.docx
[4] Microsoft SQL Docs (2018) Related Dynamic Management Views, Source
[5] Microsoft SQL Docs (2017) Use ring buffers to obtain health information about Always On availability groups, Source
